SwitchGrade DUO
The Limited Edition SwitchGrade DUO is the hardest hitting saddle adjuster in our lineup, built to play as rough as you do.
Burly and compact with just 2 positions, the DUO can do it all from winch and plummet enduro rides, park days, or freeride adventures with your best mates. Patent 12,448,072.
Compatibility Table -> Find Your Adapter Kit
DESCRIPTION
FEATURES

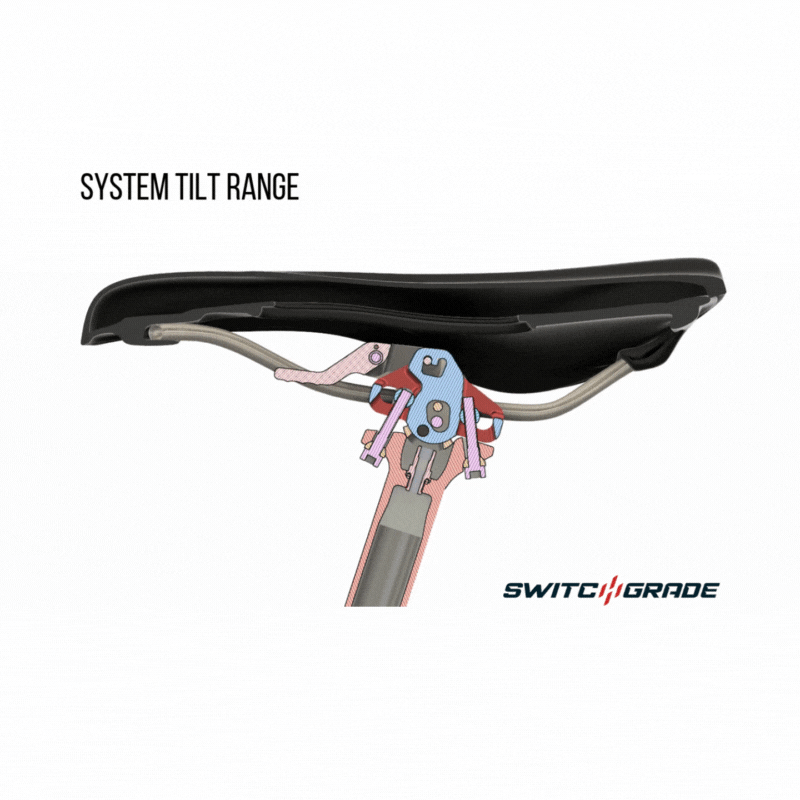

- 2 positions: "Climb" and "Flow" modes separated by 12 degrees for quick changes on the fly.
- Micro-adjustable climb angle setting.
- Spring-loaded haptic lock for fast no-look changes.
- Independent fore-aft saddle adjustment.
- Innovative compatibility system comprised of shims and adapters enables fitment across a wide range of dropper posts.
- “A” frame design is compact, sleek, and strong.
- >1 degree steepening of effective seat angle when positioned into Climb mode.
- Compact, short-throw lever prevents snagging on shorts, pants, or tow-bars.
- Machined lever grips provide added security in the wet.
- Smooth mud-shedding surfaces and ample spacing means low maintenance.
- Low profile, low stack design.
- Completely rebuildable in less than 10 minutes with basic tools.
- For use on mountain bikes, e-bikes, trail bikes, and long-travel freeride bikes.
- US Patent. 12448072
SPECIFICATIONS
- Machined from 7075-T6 and 6061-T6 aluminum.
- Dimensions: 92mm x 55mm x 40mm.
- Weight: 160g (excluding installation hardware).
- Additional stack height dependent on dropper post, average 10mm.
- SwitchGrade DUO measures 22 mm from centre of the rail clamps to the top. Allow 5mm lever throw and 5mm saddle flex for a total recommended clearance of 27 mm below the saddle body.
- Product of Canada: manufactured in Whistler, individually hand-assembled, packaged, and shipped direct from Vancouver, BC.
COLOUR OPTIONS

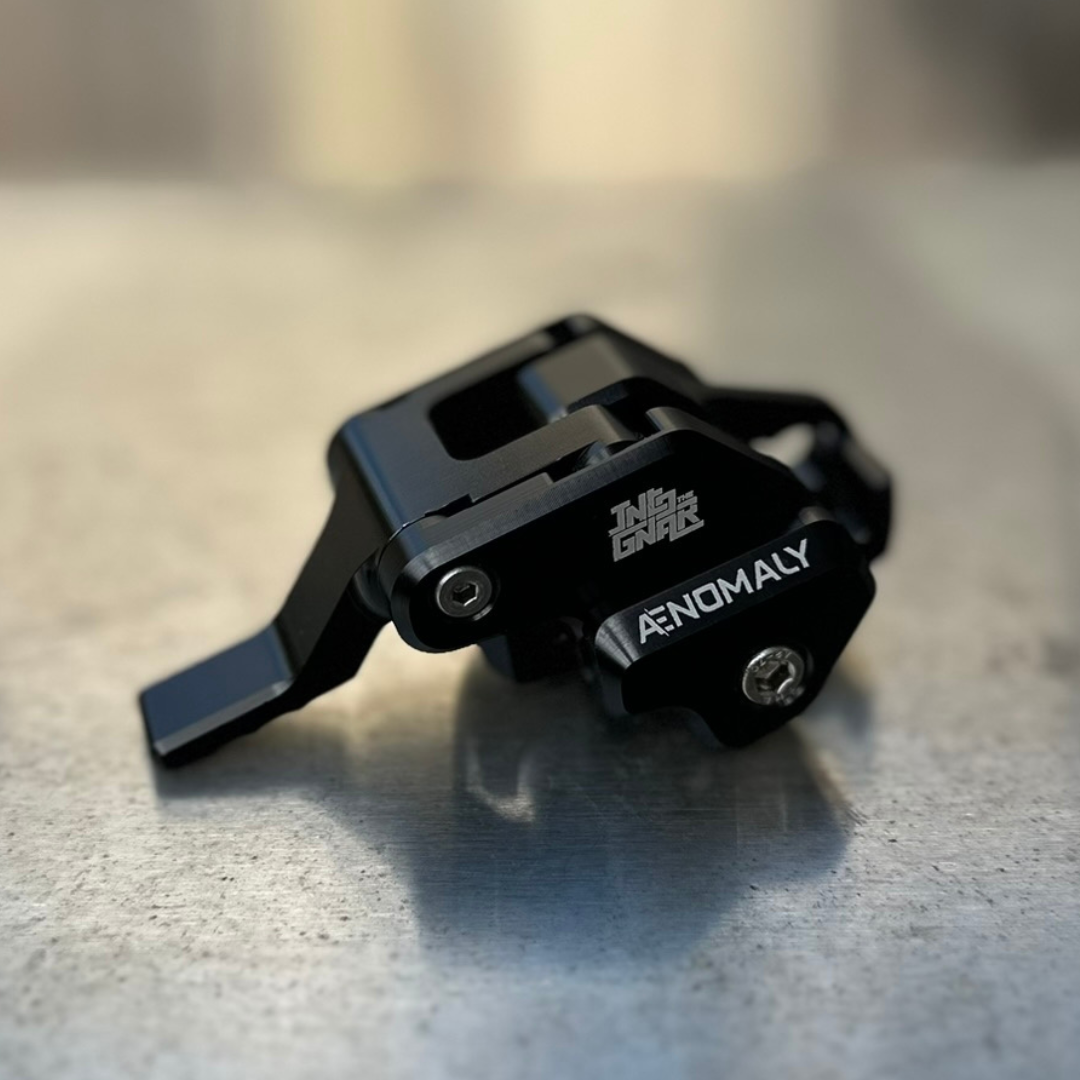

- Blackout - all black with stainless steel hardware

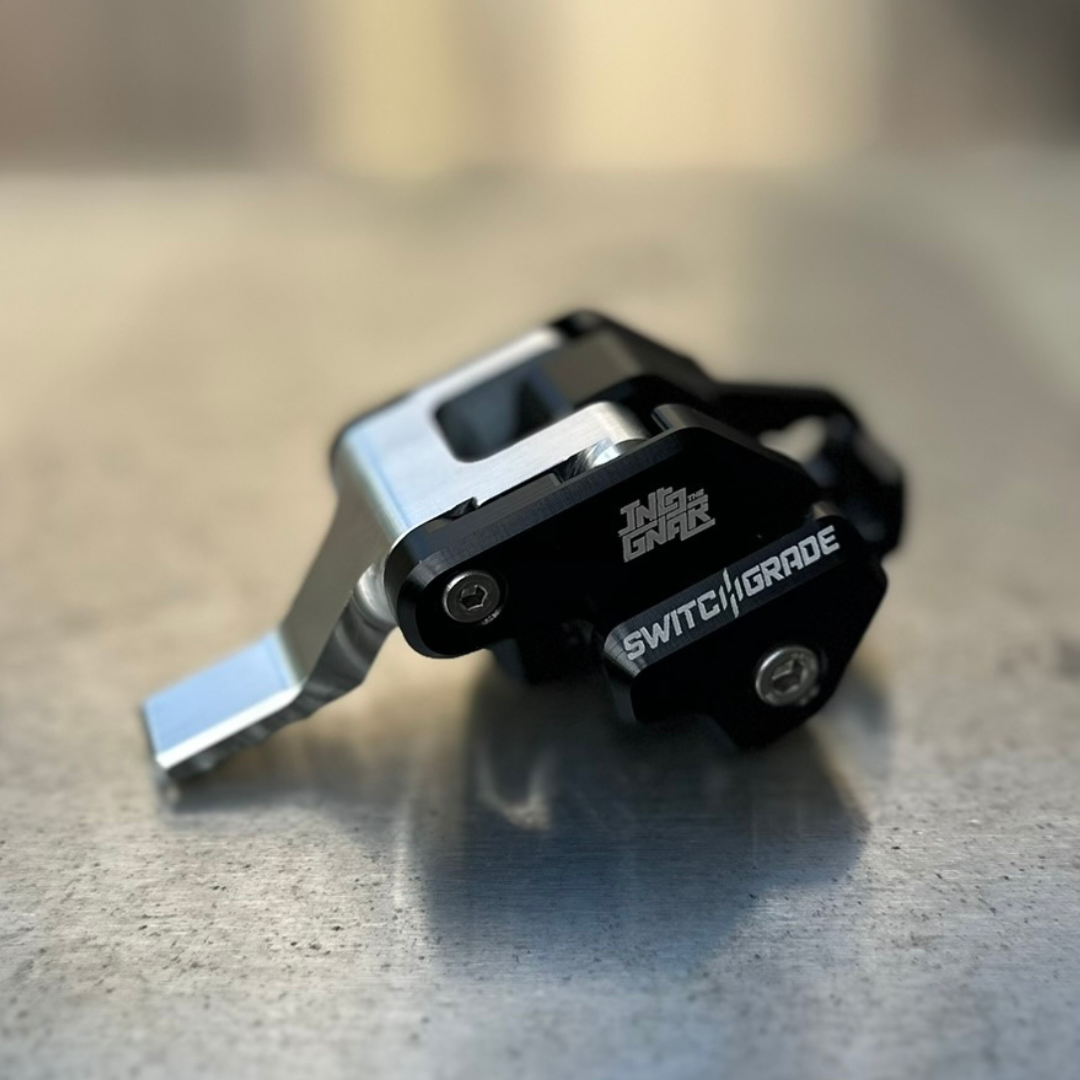

- Silverback - black body with raw silver lever and stainless steel hardware

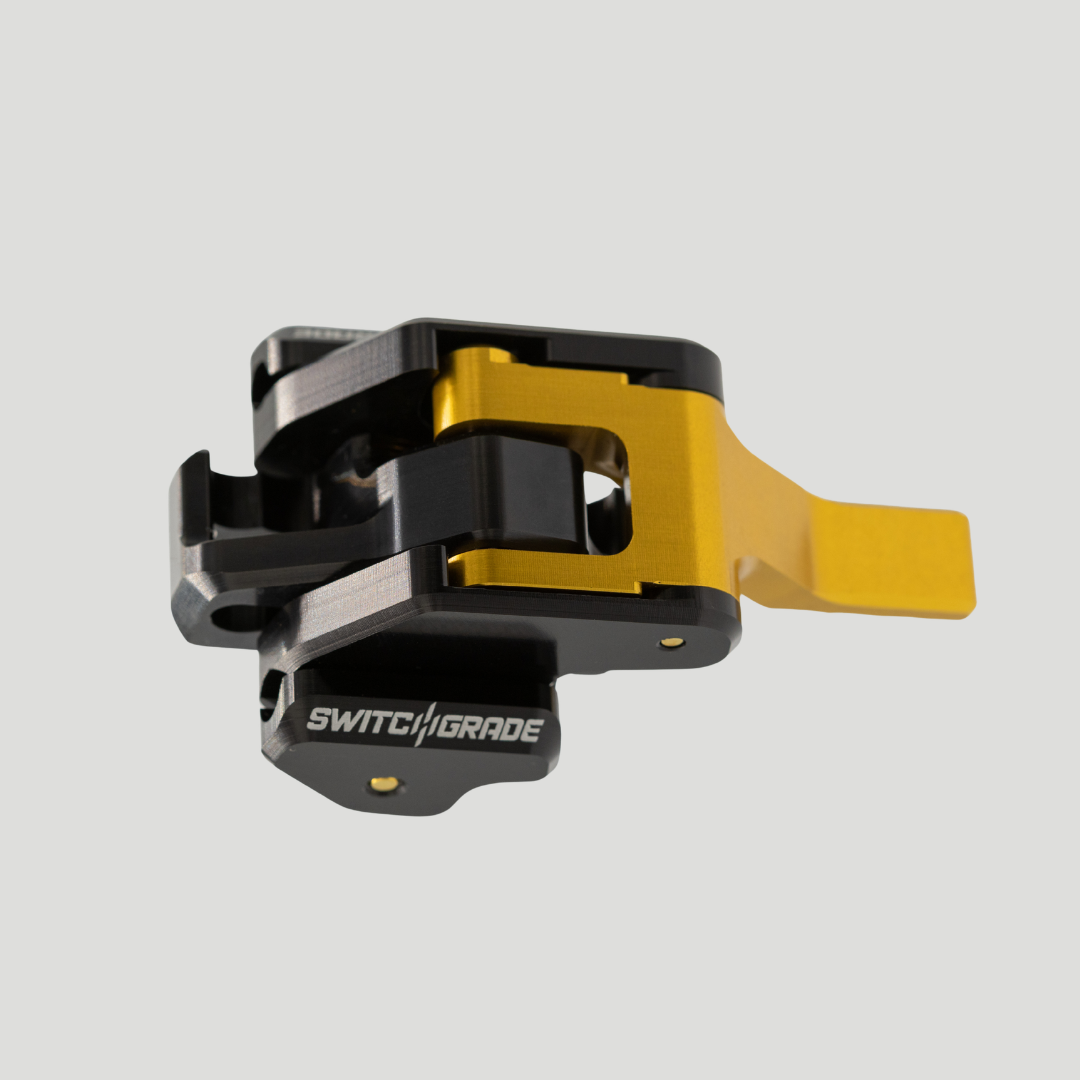

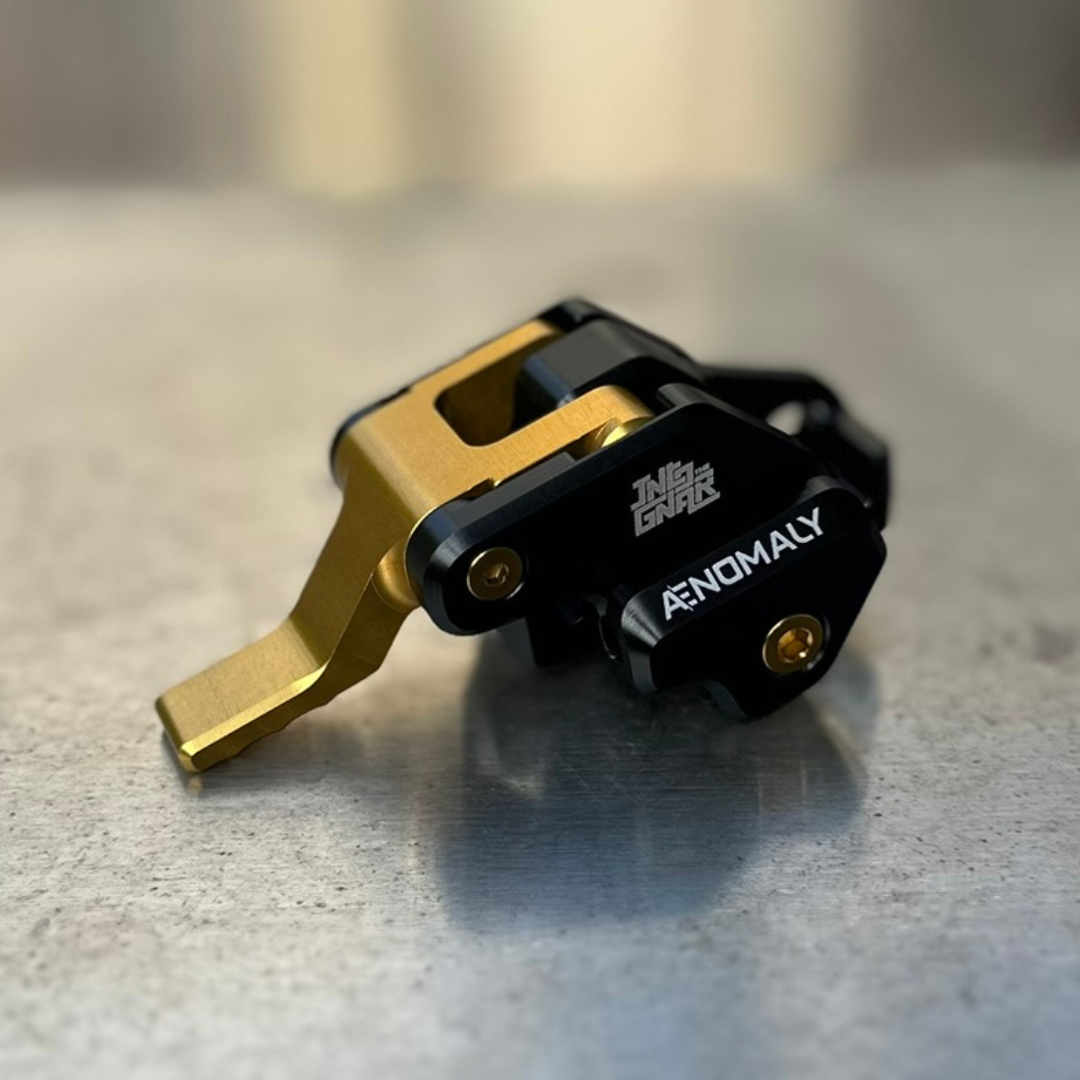

- Gold Fusion - black body with gold lever and gold titanium hardware
INCLUDED WITH EACH PURCHASE
Each purchase includes everything you need to install and enjoy your SwitchGrade including:
- SwitchGrade saddle angle adjuster
- Installation hardware
- Modular seatpost adaptors
BENEFITS
Climb easier - Tilting your saddle nose down takes pressure off your legs and lets you pedal smoother uphill.
Ride faster with more power - The right angle helps you push harder on the pedals without wasting energy.
Pedal comfortably - Seat adjustment relieves pressure on sensitive areas, and reduces strain on hips, wrists, and knees.
Pain-free riding - Saddle tilt increases lumbar support and provides better lower back posture. No more hunching over and straining your back.
Breathe easier - Dropping the nose down on climbs opens up your chest and lungs, making it easier to take in more air and keep your legs powered up.
Descend with more control - Tilting back drops the saddle down 30mm for increased clearance, safely stowing the seat away from sensitive body parts while preventing clothing snags.
THINGS YOU SHOULD KNOW
- AVAILABILITY - Ready to ship within 5 days of purchase. Subject to change.
- Limited Numbers available.
- SwitchGrades are compatible with 2-bolt style seatposts and dropper posts only. Check compatibility before you purchase to ensure you choose the right installation pack.
- SwitchGrade DUO is designed to work across a wide spectrum of saddles but require enough space to function properly and allow saddle flex. Check that you have a minimum of 27 mm between the centre of the saddle rails to the underside of your saddle before you purchase.
- SwitchGrades come with everything needed for installation. Follow the Instruction Manual or have a certified technician assist with installation. IMPORTANT: medium (blue) threadlocker, such as Loctite, must be used on ALL fasteners.
- Recommended max. rider weight: 290 lbs / 131 kg.
- Intended use: enduro, e-biking, trail, freeride, BMX, DJ, street.
USER MANUALS
Ready to ship within 2 - 5 days
TRY IT RISK FREE! Take it for a few rides and if you don't absolutely love the SwitchGrade after 30 days, return it for a refund.
1 year No Fuss manufacturer's warranty.
UK & EUROPEAN CUSTOMERS: Customs duties are exempt as per CETA and CUKFTA free trade agreements. Only VAT charges may apply.
SwitchGrade DUO
Simple, strong, and ready to take whatever you can dish out.
The Limited Edition "Into The Gnar" Signature model is a collaboration with Yoann Barelli, pro rider and founder of the Into The Gnar coaching ecosystems.
2% of proceeds will be donated to Whistler Adaptive Sports Program.
The Party Switch for Your Saddle
- Quickly toggle between climb and shred mode
- Customize your climb angle and still have gobs of clearance for the downs
- Compatible with a wide range of dropper posts
Customize the DUO for the way you ride
Play All Day
The SwitchGrade DUO can be setup to conquer the steepest pitches both up and down. But that's not all it can do.
Whether you ride an ebike, long travel enduro, or freeride rig, the DUO is the answer packaged tight and burly with zero play

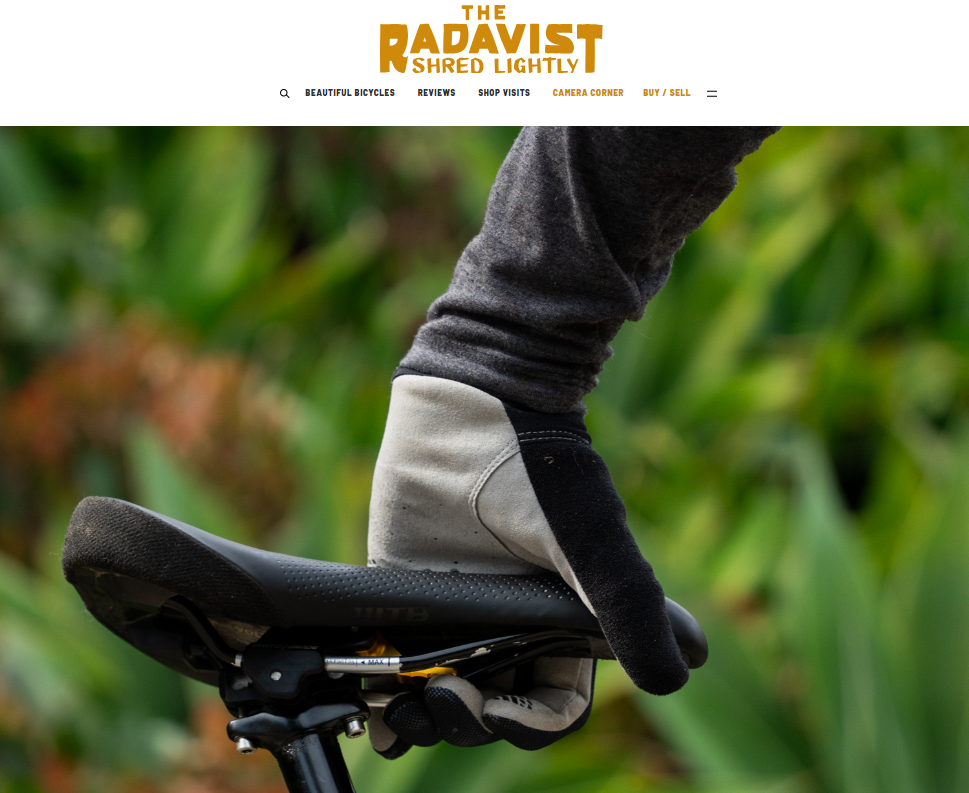

Words by Travis Engel
Radavist Recommended
"And that brings me to my main takeaway on the Switchgrade Duo. Although it drastically augments our most intimate touchpoint in ways no other component ever has, it’s remarkably unobtrusive. It’s simple, sturdy, and small. I wasn’t constantly thinking about what role it was playing on my ride, or whether it was worth its minimal weight or moving parts. I can use it when I want to, and not when I don’t."
Looking for more saddle positions?
SwitchGrade EVO
The classic 3 position SwitchGrade EVO features climb, descend, and trail modes. If you're looking for a saddle angle adjuster that's as versatile as you are, the EVO's got your name on it.

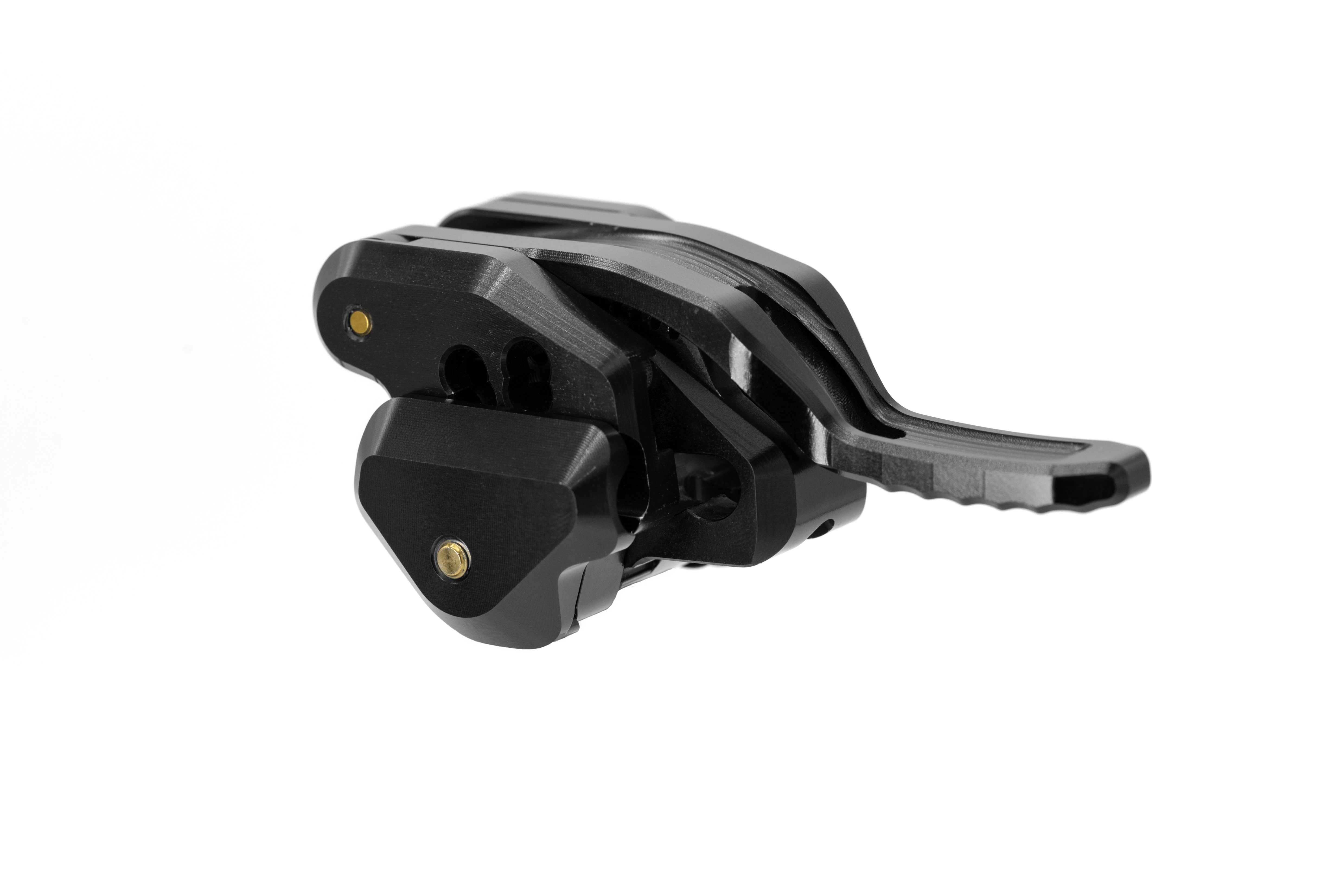

SwitchGrade PRO
Sophisticated and refined, the all new PRO model does it all - customizable number of positions and rotation sweep with 5 degree increments between steps.
What Pros Say About the SwitchGrade
Health professionals, coaches, industry luminaries, and pro athletes share their thoughts on the SwitchGrade and its benefits.
“When riding up a steep slope, a traditionally neutral saddle tilt will cause the pelvis to tilt posteriorly. This has a number of implications, both above and below the level of the hip. In addition to over-lengthening and stressing muscles of the lumbar spine, an aggressive posterior pelvic tilt alters the position of the hip joint relative to other structures in the body. This changes the leverage capabilities of the hip and surrounding muscles, particularly in regards to hip extension. Excessive posterior pelvic tilt also has a negative impact upon quadriceps muscle recruitment, and has the potential to affect the degree of terminal knee extension during pedal stroke. What this boils down to is both an uncomfortable and inefficient riding position. A negative saddle tilt, such as that provided by the SwitchGrade, helps mitigate this change in pelvic tilt during steep, seated climbing. concerns of your customers.
”
“After spending a few long days in the saddle with SwitchGrade installed, I can definitely say that the benefits are noticeable. From a biomechanics perspective, the forward tilted position definitely creates a more anteriorly rotated pelvis in the seated position. That's anatomy speak for better lower back posture, and better power transfer during seated, steep climbs. From a shredding perspective, the rearward tilt gives you a noticeably increased standover height over your dropped saddle for full send, downhill procedures. I can't wait to get more time on the bike with Switchgrade aboard.
”
“As a coach who is always looking for ways to help riders feel more comfortable on the bike, I saw immediately how this could keep pressure off their sensitive under-bits for those long steep climbs. After riding on the Switchgrade I was surprised by how much I missed it when riding on my bikes without one. It made my normal saddle position I've been riding for 20yrs feel like it was pointing straight up when climbing. I plan to introduce a lot of new people to the Switchgrade and to make sure all my bikes have one on it.
”
Frequently Asked Questions
Does it affect stack height?
Yes, stack height will increase but the actual measurement depends on your dropper post and its reported values. We would advise that you plan for an average 10mm increase in saddle height. Keep in mind, however, that tilting the saddle backwards into Descend mode will provide an additional 30mm of clearance vs. your current setup so, in practice, you will gain more room to maneuver around the saddle.
How much does it weigh?
The SwitchGrade weighs 158 grams excluding installation hardware. Consider, however, that because it replaces your dropper post's stock clamps which typically average 60-70 grams, the net add to your bike is roughly only 100g.
If I change my dropper post will I need to buy another SwitchGrade?
The most likely answer is no. SwitchGrade 2.0 EVO features a modular compatibility system meaning all that's needed is to purchase a new set of shims and/or adapters that match your new dropper or seatpost.
Does it creak or produce any play?
No, you will not find any creaking or play. The SwitchGrade was designed with as few moving parts as possible and engineered to tight tolerances. Listen to what Dr. J MTB has to say about build quality and durability on his SwitchGrade review.
What is your return policy?
If you don't absolutely love your SwitchGrade within 30 days of receipt, simply email us at info@aenomalyconstructs.com to authorize a return and refund. All inquiries must be approved prior to initiating a return. To learn more, read our Return Policy.
Does the SwitchGrade work with all saddles?
SwitchGrades are designed to work with the vast majority of railed saddles with round 7mm rails. If your saddle has oval rails (eg. 7mm x 9mm or 7mm x 10mm) then you will need to purchase Oval Rail Clamps sold separately.
SwitchGrades are designed to allow room for saddle flex. We recommend using a saddle that allows a minimum of 5mm of space between the undercarriage of the saddle and the top of the SwitchGrade. As a result, some saddles may not pair as well with the SwitchGrade as others, especially if they contain obstructions. If you are unsure, send us a photo of your saddle so we can verify fitment.
